เครื่องส่องเส้นเลือดขนาดเล็กสำหรับพกพา (Portable LED vein finder)

BOB OM oz Led (vascular)

Medical illuminator-portable version(vascular)

Indispensable for sclerotherapyy treatments.

Strong light emitted by 20 LED diodes built-in the intersected, lightening ring (550-660 nm) ensure the perfect visualization of subcutaneous veins.

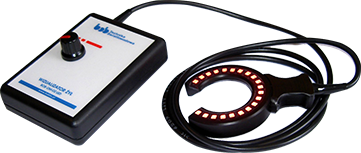

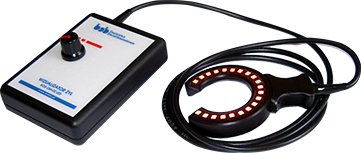

Portable medical illuminator consists of ; intersected ring with 20 LED diodes directing light stream below the skin surface and battery power supply.

We can make observtion of veins from the top - after putting and pressing the lightening ring to the patient's skin.

During the observation the outside light should be reducted to a minimum.

Operator can select the proper level o the illumination with the adjuster built into the device (0-100%).

The bright lighting is useful for examining little, surface  veins. The weaker level of the illumination is advantagous for examining deeper veins.

Wile examining one should lightly press the ring in order to ensure the contact with skin.

Veins can be watched not only in the inside ring area, but outside the ring as well.

(after covering the ring centre with a gauze or cotton dressing).

It is the best way to show and examing long veins.

The intersection of the ring makes easier laser treatement(sclerotherapy) or using a syringe.

  TECHNICAL DATA
Light Source                20 LED diodes
Power Supply               Battery AA 1.5V 2pcs
Lifetime                        5 hours
Ring Dimensions         external diameter 58mm ,  inside diameter 35mm,  thickness 10 mm
